Asquiths Bathrooms Asquiths Tranquil Concealed 2 / 3 / 4 / Way Diverter – SHD5122

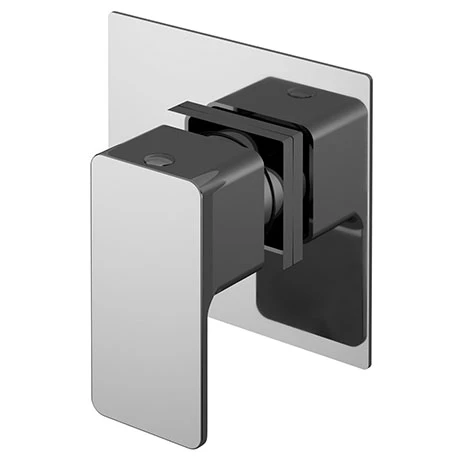

Asquiths Tranquil Concealed 2 / 3 / 4 / Way Diverter – SHD5122

A place of peace and stillness. A collection where refined lines and curves meet, each product functioning with the next to create your place of tranquillity. The angular shapes of this diverter will create a high impact contemporary focal point in any bathroom.

The water feed to this product will need to come via a suitable valve that has a built in on/off function (there is no on/off control with this diverter valve). These diverter valve models are operated manually, and are designed with multiple outlets which will allow up to four shower accessories to be used (only one shower accessory can be used at once as these are not designed for a “split” water flow between ports). Two blanking caps are also supplied to allow the installer to cap off any ports that are not required.

Designed for use with an Asquiths thermostatic temperature control and stop tap.

Product Details

• Width: 100mm
• Height: 100mm
• Depth: 135mm
• Finish: Chrome
• Manufactured from high quality brass/ABS
• Type: Concealed 2 / 3 / 4 / Way Diverter
• Brand: Asquiths
• Product Code: SHD5122
• Style: Contemporary
• Range: Tranquil
• Concealed
• 1/4 turn ceramic disc technology for long life and smooth operation
• Supplied with 2 blanking caps
• Min operating pressure: 0.2 bar
• Max operating pressure: 5 bar
• Designed & built in Britain

Guarantee: 20 Years

Flow Rates

0.1 Bar – 5.2 l/m
0.5 Bar – 13.3 l/m
1 Bar – 19.1 l/m
2 Bar – 27 l/m
3 Bar – 33.2 l/m
