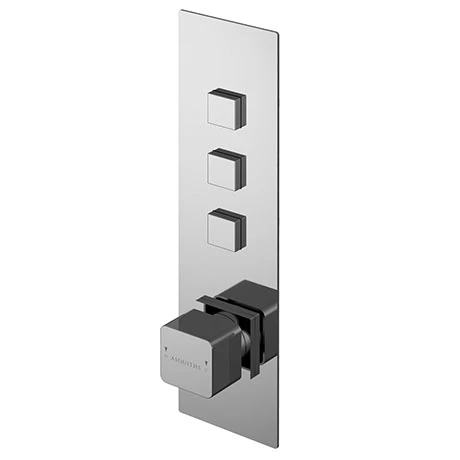

Asquiths Bathrooms Asquiths Tranquil Push Button Shower Valve (Triple Outlet) – SHD5103

Asquiths Tranquil Push Button Shower Valve (Triple Outlet) – SHD5103

A place of peace and stillness. A collection where refined lines and curves meet, each product functioning with the next to create your place of tranquillity. A collection created with defined lines, each working collectively to discover a place of revival. Simple push on/off flow controls provide you with instant start/stop activation. Designed for use with three outlets, outlets can be operated individually, or enjoy one, two or three simultaneously (depending on available water pressure).

To activate the shower, a simple press of the button starts or stops the flow of water from the shower outlet. To control the temperature, turn the temperature control handle clockwise to reduce the water temperature, and turn anti-clockwise to increase the water temperature.

Product Details

• Width: 80mm
• Height: 305mm
• Depth: 135mm
• Finish: Chrome
• Manufactured from high quality brass/ABS
• Triple Outlet
• Type: Thermostatic Shower Valve
• Brand: Asquiths
• Product Code: SHD5103
• Style: Contemporary
• Range: Tranquil
• Concealed
• Latest push button shower technology (On/Off control for 3 outlets)
• Outlets can be operated separately or simultaneously
• Min operating pressure: 1 bar
• Max operating Pressure: 5 bar
• Factory Outlet Temperature Setting:
• 43°c Minimum Temperature Differential (Mixed water to hot water): 10°C Temperature Stability: ±2°C
• Designed & built in Britain

Guarantee: 20 Years

FLOW RATE DATA – 3 OUTLET MODEL

1 OUTLET
BAR  (Ltr/min)
1–8.1
2–12.6
3–15.6
4–18.0
5–20.2

2 OUTLET COMBINED
BAR  (Ltr/min)
1–12.0
2–19.5
3–24.5
4–28.5
5–32.0

3 OUTLET COMBINED
BAR  (Ltr/min)
1–13.8
2–21.8
3–28.0
4–32.9
5–37.0
